Product Details:
|
| Product Item: | Bitmain Antminer | Model: | Antminer KA3 166TH |
|---|---|---|---|
| Size: | 195 X 290 X 400mm | Noise Level: | 80db |
| Fan(s): | 4 | Power: | 3154W |
| Interface: | Ethernet | Temperature: | 5 - 35 °C |
| Warranty: | 180days | Package: | Original Carton |
| MINING Coin: | Kadena | ||
| Highlight: | Antminer KA3 Bitmain Mining machine,KA3 166Th Kadena Asic Miner,4 Fans Kadena Asic Miner |
||

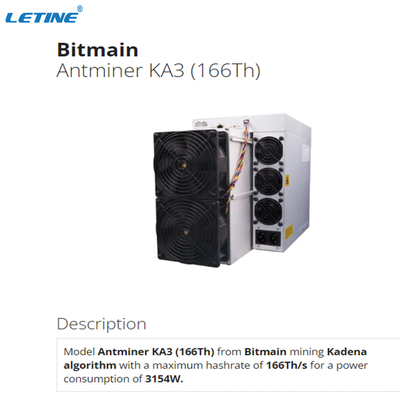

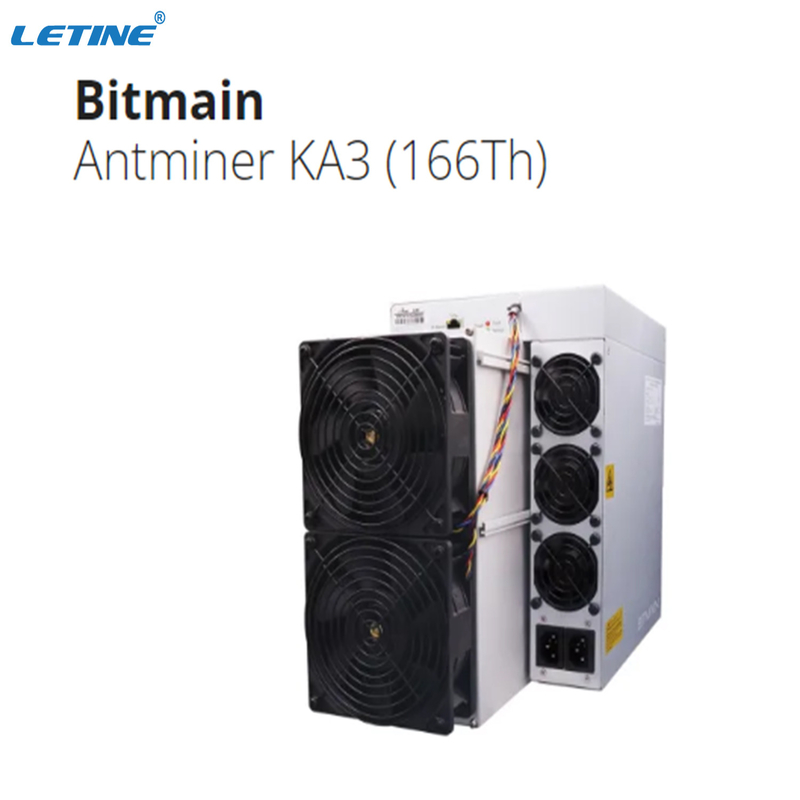

Antminer KA3 166Th Bitmain Mining Kadena Asic Miner
NOTE:
1.If the user fails to use the product in accordance with the given instructions, specifications, and conditions provided, or change the function setting without BITMAIN's prior consent, BITMAIN will not be liable for any damage arising therefrom.
(1-1) Caution: Wrong input voltage may probably cause miner damaged
(1-2)Max condition: temperature 40°C, altitude 0m
(2-1)Including PSU size
(2-2) Including PSU weight
(3-1)When the miner is used at an altitude from 900m to 2000m, the highest operating temperature decreases by 1℃ for every increase of 300m.
| Manufacturer | Bitmain |
|---|---|
| Model | Antminer KA3 (166Th) |
| Release | September 2022 |
| Size | 195 x 290 x 430mm |
| Weight | 16100g |
| Noise level | 80db |
| Fan(s) | 4 |
| Power | 3154W |
| Voltage | 200-240V |
| Interface | Ethernet |
| Temperature | 5 - 40 °C |
| Humidity | 10 - 90 % |
| Detailed Characteristics | |
| Power Supply | |
| Power supply AC Input voltage, Volt(1-1) | 200~240 |
| Power supply AC Input Frequency Range, Hz | 47~63 |
| Power supply AC Input current, Amp(1-2) | 20 |
| Hardware Configuration | |
| Networking connection mode | RJ45 Ethernet 10/100M |
| Miner Size (Length*Width*Height, w/o package),mm(2-1) | 430*195.5*290 |
| Miner Size (Length*Width*Height, with package),mm | 570*316*430 |
| Net weight, kg(2-2) | 16.1 |
| Gross weight, kg | 17.7 |
| Environment Requirements | |
| Operation temperature,°C | 0~40 |
| Storage temperature,°C | -20~70 |
| Operation humidity(non-condensing) , RH | 10~90% |
| Operation altitude, m(3-1) | ≤2000 |
Packing for this Crypto Currency Miner Farm Bitmain Antminer KA3 166Th KDA Ant Miner Top Profit Kadena Block Chain Miners:
We also have below models for your reference,welcome your inquiury!
| Model | Power | Weight | Size |
| S19J 90T | 3250 W | 14.2KG | 195 x 290 x 370mm |
| S19 95T | 3250 W | 14.5KG | 195 x 290 x 400mm |
| S19J Pro 96T | 2832W | 14.2KG | 195 x 290 x 400mm |
| S19J Pro 100T | 3050 W | 13.2KG | 195 x 290 x 370mm |
| S19J Pro 104T | 3068w | 13.2KG | 195 x 290 x 370mm |
| S19 Pro 110T | 3250 W | 13.2KG | 195 x 290 x 370mm |
| T19 88T | 3344W | 14.2KG | 195 x 290 x 400mm |
| S9 13.5/14 T | 1350 / 1400 W | 4.2KG | 135 x 158 x 350mm |
| S9j 14.5T | 1350 W | 4.2KG | 135 x 158 x 350mm |
| S9 SE 16T/17T | 1280 W | 4.6KG | 129 x 200 x 321mm |
| A1166pro 81T | 3400W | 13KG | 306 x 405 x 442mm |
| A1246 83/85/87 | 3420W | 13KG | 331 x 195 x 292mm |
| A1126pro 68Th | 3420W | 11.2KG | 331 x 195 x 292mm |
| 2TZ 29/30T | 2400 W | 9KG | 141 x 220 x 391mm |
| T2TH 32T | 2200 W | 7.5KG | 150 x 180 x 400mm |
| M20S 68 T | 3360W | 12.5KG | 130 x 220 x 390mm |
| M21S 56 T | 3360 W | 12.5KG | 155 x 240 x 390mm |
| M30S 100T | 3400W | 10.5KG | 150 x 225 x 390mm |
| M30S+ 112T | 3472W | 10.5KG | 155 x 225 x 425mm |
| M31S 76T | 3220W | 12.5KG | 130 x 220 x 390mm |
| M31S+ 80T | 3360W | 11.5KG | 120 x 230 x 390mm |
| M32 66T | 3432W | 12.5KG | 150 x 240 x 390mm |
| A11Pro 2GH | 2500W | 9KG | 136 x 285 x 362mm |
| A10 Pro 500MH | 1350W | 9KG | 136 x 285 x 362mm |
| A10 Pro+ 750MH | 860 W | 9KG | 136 x 285 x 362mm |
| E9 3GH | 2556W | 14.2KG | 195 x 290 x 400mm |
| L7 9500MH | 3425W | 13.2KG | 195 x 290 x 370mm |
| L7 9160MH | 3425W | 13.2KG | 195 x 290 x 370mm |
| L3+ 504M | 800W | 4.5KG | 188 x 130 x 352mm |
| LT5Pro | 3100W | 8.5KG | 200 x 264 x 270mm |
| DR5 (35Th) | 1610W | 8KG | 178 x 238 x 297mm |
| STU-U1+ | 1850W | 6.6KG | 130 x 210 x 348mm |
| D1 | 2200W | 8.5KG | 130 x 220 x 390mm |
| Z15 420K | 1510 W | 9KG | 133 x 245 x 290mm |
| D7 1.286Th/s | 3148W | 14.2KG | 400 x 195 x 290mm |
| HS5 | 2650w/1500W | 8.5KG | 264 x 200 x 290mm |
| CK5 | 2400w | 8.5KG | 264 x 200 x 290mm |
| KD5 | 830W | 8.5KG | 200 x 264 x 290mm |
Remark: We also have other models for options. If you have demand, welcome to inquiry with us |
|||
