Product Details:
|
| Model No.: | S19 Pro+ Hyd 198Th | (Length*Width*Height: | 570*316*430MM |
|---|---|---|---|
| Net Weight, Kg: | 15.2kg | Hashrate, TH/s: | 198 ±3% |
| Power Supply AC Input Voltage, Volt(2-1): | 342~418V | Two AC Input Wire: | 10A Per Wire |
| Highlight: | S19 Pro+ Hyd Asic Bitcoin Miner,S19 XP Hydro Asic Bitcoin Miner,Antminer S19 XP Hydro |
||
NOTES

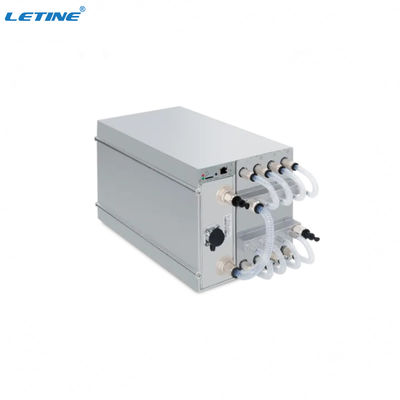

1. The ANTMINER S19 Pro+ Hyd. is recommended to be used simultaneously with the ANTSPACE HK3.
Specification:
| Product Glance | |
| Version | S19 Pro+ Hyd. |
| Model No. | j0-10 |
| Crypto Algorithm | SHA256 |
| Hashrate, TH/s | 198 ±3% |
| Power on wall @35°C, Watt(1-1) | 5445 ±5% |
| Power efficiency on wall @35°C, J/TH(1-1) | 27.5 ±5% |
| Detailed Characteristics | |
| Power supply AC Input voltage, Volt(2-1) | 342~418 |
| Power supply AC Input Frequency Range, Hz | 47~63 |
| Power supply AC Input current, Amp(2-2) | 30 |
| Hardware Configuration | |
| Networking connection mode | RJ45 Ethernet 10/100M |
| Miner Size (Length*Width*Height, w/o package),mm | 410*196*209 |
| Miner Size (Length*Width*Height, with package),mm | 570*316*430 |
| Net weight, kg | 15.2 |
| Gross weight, kg | 17.5 |
![]()
![]()
![]()
![]()
![]()
| Specification Details For ANTSPACE HK3 | |
| Product Overview | |
| Version | ANTSPACE HK3 |
| Dimensions (L*W*H) (mm) | 6058*2438*2896 |
| Miner Capacity | 210 units -S19 Hyd. Series miner |
| Container Certification | China Classification Society Certification |
| Safety Certification | North America/Standards:NFPA 79:2021,UL 508A:2018 R8.21, |
| CSA C22.2 No. 14-18,ANSI/ISO 12100:2012 | |
| EU/Standards:EN ISO 12100,EN 60204-1 | |
| Operating Power(kW) | 1047~1050 |
| PUE(Power Usage Effectiveness) | 1.022(Excluding cooling tower)/1.036(Including cooling tower) |
| Input Voltage and Frequency | 415V±5% 60Hz(North America) |
| 400V±5% 50Hz(EU,Middle East) | |
| Detailed Characteristics | |
| Shipping Weight(T) | 8 |
| Operating Weight (T) | 12 |
| Main Switch of Power Distribution Cabinets(A) | 1200(North America) |
| 1250(EU,Middle East) | |
| Rated Current(A) | 952 |
| Standard Power(kW) | 1049 |
| Maximum Power(kW) | 1050 |
| Rated Current per Miner(A) | 10 |
| Inlet Cable | The inlet cables can withstand high-voltage of above 600V, with the following requirements per phase: |
| L1 single core cable 600kcMil(300mm²)x4 | |
| L2 single core cable 600kcMil(300mm²)x4 | |
| L3 single core cable 600kcMil(300mm²)x4 | |
| N Single-core cable 600kcMil(300mm²)x4 | |
| PE single-core cable 500kcMil(240mm²)x2 | |
| Connection Interface(Cooling Tower) | DN125(GB/T 9119-2010 PN16 DN125) |
| Connection Interface(Plate Heat Exchage Interface) | DN100(GB/T 9119-2010 PN16 DN100) |
| Flow Rate(m³/h) | >85 |
| Quantity of ANTSPACE powered by one 2500kVA Transformer | 2 |
