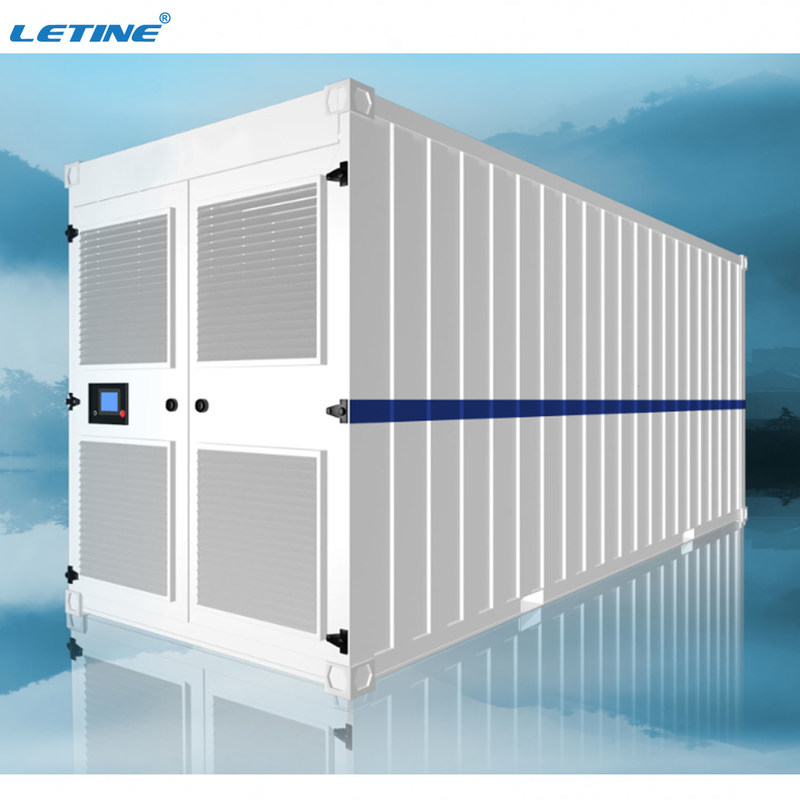

235KW Bitmain Asic Antminer 255T 158T Water Cooled Miner Cooling System
Best Profit 235KW Immersion Cooling Container Water-cooled Miner Cooling System for 252pcs 336pcs Antminer Whatsminer
Input Voltage: 380V/50Hz
Total Power Consumption: 200KW
PUE: 1.0526
Power Consumption: 4600W - 6300W
Water Temperature (In/Out): 35°/46°
Container Power Consumption: 5KW - 10KW
Size: 2043*2610*755
Weight: 300Kg/1000Kg
Quantity: 30 - 45
Interface(cold tower): DN125
Interface(Heating): DN125
Interface(Heating & Pressure Bearing Capacity) :10Kg
Environmental Temperature: -25~40ºC
dB(A) Decibel : 65
Internal Coolant :antifreeze / water
Specification:
| Product Overview |
|
| Model |
ANTSPACE HK3 |
| Dimensions (L*W*H) (mm) |
6058*2438*2896 |
| Miner Capacity |
210 units -S19 Hyd. Series miner |
| Container Certification |
China Classification Society Certification |
| Safety Certification |
North America/Standards:NFPA 79:2021,UL 508A:2018 R8.21, |
| CSA C22.2 No. 14-18,ANSI/ISO 12100:2012 |
| EU/Standards:EN ISO 12100,EN 60204-1 |
| Operating Power(kW) |
1047~1050 |
| PUE(Power Usage Effectiveness) |
1.022(Excluding cooling tower)/1.036(Including cooling tower) |
| Input Voltage and Frequency |
415V±5% 60Hz(North America) |
| 400V±5% 50Hz(EU,Middle East) |
| Detailed Characteristics |
|
| Shipping Weight(T) |
8 |
| Operating Weight (T) |
12 |
| Main Switch of Power Distribution Cabinets(A) |
1200(North America) |
| 1250(EU,Middle East) |
| Rated Current(A) |
952 |
| Standard Power(kW) |
1049 |
| Maximum Power(kW) |
1050 |
| Rated Current per Miner(A) |
10 |
| Inlet Cable |
The inlet cables can withstand high-voltage of above 600V, with the following requirements per phase: |
| L1 single core cable 600kcMil(300mm²)x4 |
| L2 single core cable 600kcMil(300mm²)x4 |
| L3 single core cable 600kcMil(300mm²)x4 |
| N Single-core cable 600kcMil(300mm²)x4 |
| PE single-core cable 500kcMil(240mm²)x2 |
| Connection Interface(Cooling Tower) |
DN125(GB/T 9119-2010 PN16 DN125) |
| Connection Interface(Plate Heat Exchage Interface) |
DN100(GB/T 9119-2010 PN16 DN100) |
| Flow Rate(m³/h) |
＞85 |
| Quantity of ANTSPACE powered by one 2500kVA Transformer |
2 |
| Product Overview |
|
| Type |
Dry-Wet Tower Traditional Type (DWT-T) |
Dry-Wet Tower Container Type (DWT-C) |
| Dimensions(L*W*H)(mm) |
5800*2240*4200 |
6058*2438*2896 |
| Heat Dissipation Capacity(kW) |
1000 |
1000 |
| Outlet Temperature @ 28℃ Wet Bulb Temperature |
35℃ |
35℃ |
| Container Certification |
None |
China Classification Society Certification |
| Safety Certification |
North America/Standards: NFPA 79:2021, UL 508A:2018 R8.21, |
North America/Standards: NFPA 79:2021, UL 508A:2018 R8.21, |
| CSA C22.2 No. 14-18, ANSI/ISO 12100:2012 |
CSA C22.2 No. 14-18, ANSI/ISO 12100:2012 |
| EU Standards: EN ISO 12100, EN 60204-1 |
EU Standards: EN ISO 12100, EN 60204-1 |
| Operating Power(kW) |
14~28 |
14~28 |
| Motor Rated Voltage and Frequency |
415V±5% 60Hz(North America) |
415V±5% 60Hz(North America) |
| 400V±5% 50Hz(EU,Middle East) |
400V±5% 50Hz(EU,Middle East) |
| Detailed Characteristics |
|
| Shipping Weight(T) |
5 |
7 |
| Operating Weight(T) |
9 |
12 |
| Connection Interface(Container) |
DN125(GB/T 9119-2010 PN16 DN125) |
DN125(GB/T 9119-2010 PN16 DN125) |
| Water Resupply Pipe Interface |
DN40(Internal thread) |
DN40(Internal thread) |
| Drain Pipe Interface |
DN65(Internal thread) |
DN65(Internal thread) |
| Noise Level @25℃, 16m |
70dBA |
70dBA |
| Water Consumption(m³/h) |
1~1.5 |
1~1.5 |
Shenzhen Letine Techonology Co., Ltd , Established in 1998.
16 years alibaba gold supplier, factory was verified by SGS & BV. we produce gpu mining rig and supply
original bitmain antminer/whatsminer/avalon/innosilicon/Jasminer/goldshell/Yami/ Ipollo miner since 2015.
below hot sale asic miner and mining rig model for your reference:
BTC:
Bitmain Antminer:
Stock -HK T19 88T/84T 38W/T
Stock -HK S19 95T/90T 34.5W/T
Stock -HK S19j (90Th)
Stock -HK S19J Pro 96T /100T/ 104T 29.5W/T
Stock -HK S19Pro 110T 29.5W/T
preorder S19XP 104T 21.5W/T
preorder S19 Pro+ Hyd (198Th) 27.5W/T
Stock -HK T17E 50T 55W/T
Antminer S9/ S9K S9e
Antminer upgrade S17 Pro 56T, T17+ 58t, T17e 53t, T17 42T
Avalon:
stock HK A1166pro 81T 42W/T
Stock -HK A1246 93T/90T/ 87T /85T/ 83T 38W/T
stock 1126 Pro / 1066
Whatsminer:
stock-HK M30S++ 110T 31W/T
Stock -HK M30S+ 100T/104T/106T 31W/T
Stock -HK M30S 88T/86T 38W/T
Stock -HK M31S+ 82T
Stock -HK M31S+76T 44W/T
Stock -HK M31S+ 72T 48W/T
used M21S 54T/58T
used M20S 68T
used M32S 70T
Dogecoin and Litecoin:
Stock -HK L7 8550mh / 8800mh/ 9050mh /9300mh /9500mh
Stock SZ Antminer L3+ ( L3++) with used pc psu 504M
Stock SZ Antminer Refurbished L3+ (L3++)with used pc psu 504M
ETH and ETC:
SZ- stock jasminer X4-1U 520M 240W
SZ- stock YAMI YM-100(Black)2100MH
SZ -stock YAMI YM-100(silver)2400MH
SZ stock YM 200 180W
Innosilicon A11 8GB 1.5Gh/s
Innosilicon A10 Pro 6G 720M:USD4877
Innosilicon A10 Pro 7G 720M:USD5494
Stock-SZ Ipollo V1 mini ETC 130M 104W
Stock-SZ Ipollo V1 mini ETH 300M 224W
used Antminer E7 800Mh/s
KDA Coin:
Stock-SZ KD BOX PRO 2.6T 230W
Stock-SZ KD LITE 16.2T
Stock-SZ KD6 se 25.3T
Stock-SZ KD6 29.2T
ZEC Coin:
antminer z15 420ksol /z11 135ksol, innosilicon A9
GPU Mining Rig: (support mining all coin except bitcoin !!!)
M06S 6GPU Mining Rig (Without graphic card) include: 6gpu mining motherboard inbuild
Intel 2980CPU (70mm pcie distance)+ mining case + 4*fans +3000W Psu+ DDR3 Ram 4GB +128GB SSD
M08S 8 GPU Mining Rig (Without graphic card) include: 8gpu mining motherboard inbuild Intel
2980CPU(65mm pcie distance)+ mining case + 5*fans +3000W Psu+ DDR3 Ram 4GB +128GB
M05S Fullset 5GPU Mining Rig (Professional for Used for IDC Platform):
5gpu mining motherboard (70MM PCIE Distance)+ mining case+3*fans +2300w psu+ DDR3 Ram 4GB +128GB SSD
FAQ:
Q1: How can I get your latest product and price list?
A1: Please provide your contact information (Such as Email, Whatsapp, Skype, Wechat) to us.
We will contact you and send our quotation to you as soon as possible.
Q2: How about the Warranty?
A2: Some model is 180 days warranty. Some miner is 360 days warranty
Q3: Who could provide the Warranty Service?
A3: If it is within the warranty period, the original factory of the miners will be responsible for it. If it is out of warranty, we will provide paid maintenance service.
Q4: How about the payment?
A4: We mainly support USDT, USDC, T/T bank transfer, MoneyGram, Western Union, Cash and So on.
Q5: What is your shipping methods?
A5: We use UPS, DHL, FedEx, EMS, TNT, Aramex or the shipping agent as your request, but we will give you best suggestion of which shipping method
