Bitcoin Crypto Currency Mining Machine Canaan AvalonMiner 1166

Bitcoin Crypto Currency Mining Machine Canaan AvalonMiner 1166
Bitcoin Crypto Currency Mining Machine Canaan AvalonMiner 1166
Bitcoin Crypto Currency Mining Machine Canaan AvalonMiner 1166 Bitcoin Crypto Currency Mining Machine Canaan AvalonMiner 1166 Bitcoin Crypto Currency Mining Machine Canaan AvalonMiner 1166 Bitcoin Crypto Currency Mining Machine Canaan AvalonMiner 1166

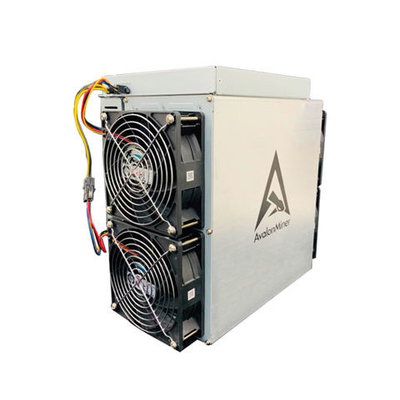

Large Image :  Bitcoin Crypto Currency Mining Machine Canaan AvalonMiner 1166

Product Details:
Place of Origin: China
Brand Name: Canaan
Model Number: Avalon 1166
Payment & Shipping Terms:
Minimum Order Quantity: 1 piece
Price: USD 1599- 2199 per piece
Packaging Details: original factory carton packing
Delivery Time: 1 to 7 days
Payment Terms: TT/USDT
Supply Ability: 10000pcs per day

Bitcoin Crypto Currency Mining Machine Canaan AvalonMiner 1166

Description
Product Item: Canaan AvalonMiner 1166 Hash Rate: 81T / 83T / 85T /87T / 90T / 93T 96T Optional
Size: 331 X 195 X 292mm Power: 3420W
Algo: SHA-256 Mining Coin: Bitcoin
Brand: Original AvalonMiner
High Light:

AvalonMiner 1166 Crypto currency Mining Machine

,

Bitcoin Crypto currency Mining Machine

,

Canaan AvalonMiner 1166

Stock Canaan AvalonMiner 1246 85T 87T 90T 93T 96T A1246 SHA-256 Bitcoin Miner



Avalon A1166.

ASIC miner manufacturer Canaan did not break the tradition of the 11-series lineup, laid down by the marking of the 10-series. After the summer release of 1126 in 2020, miners received Avalon with the index 1166 already in October.

The ASIC miner was produced on a 16nm chip, which had been used up to that point in the 10 and 11 series. The chip showed high reliability in operation, which allowed Canaan to "squeeze" higher hash rate parameters out of it by working on the cooling circuit and power supply unit.

As a result, the Avalon 1166 produced output parameters:


  • Working Algorithm: SHA-256
  • Cooling system: Air cooled by 4x fans
  • Chip process size: 16nm
  • Hash rate: 68 TH/s
  • Power Consumption: 3196W
  • Energy efficiency: 47 J/TH
  • Operating temperature range: 5-35C
  • Noise level: 75 dB
  • Weight: 12.8 kg
  • Dimensions: 331 x 195 x 292


As you can see from the figures above, the 1166 turned out to be the most energy efficient device at the time of the ASIC miner release. The company gave a reasonable "price tag" for it and the miner was already sold out at the moment of the announcement.

Despite the Avalon 1166 model being equipped with a 16nm chip, it continues to work on farms. The owners of the equipment with the help of installation of custom and stock firmware achieve an increase in the profitability of mining.

The actual software for ASIC-miners updates is available in the special section of our website. The custom or stock firmware of older models reduces the entry threshold into mining, gives compromise solutions for farm upgrades.



Avalon 1166 PRO S 72T

Canaan has decided in 2021 to return to the 11-series, despite the launch of newer, 12-series devices. Probably, the ASIC miner manufacturer went for such a deed because of the lack of the latest chips. Model Avalon 1166 PRO with the index S reliable 16 nm processor, but a significantly improved cooling system, as well as a powerful power supply.

In this build, the 1166 PRO S 72 produced the following specifications:


  • Operating Algorithm: SHA-256
  • Cooling system: 4 fans air cooling
  • Chip process size: 16nm
  • Hash rate: 72 TH/s
  • Power Consumption: 3420W
  • Energy efficiency: 48 J/TH
  • Operating temperature range: 5-35C
  • Noise level: 75 dB
  • Weight: 11.2 kg
  • Dimensions: 331 x 195 x 292


The figures show the lack of progress in energy efficiency compared to some of the previous models in this series. The 1166 PRO S 72 stood out only for its hash rate at the time of the ASIC miner release.

In the process of operating the equipment there appeared custom and stock firmware, after the update increasing the cryptocurrency mining performance. Current versions of these programs can be found in a special section of our website.





Specification for avalonminer 1246 as below:

Manufacturer Canaan
Model AvalonMiner 1166
Also known as Avalon 1166 pro
Hash Rate 81T / 83T /85T /87T / 90T /93T /96T Optional
Size 331 x 195 x 292mm
Noise level 75db
Fan(s) 4
Power 3420W
Voltage 12V
Interface Ethernet



Bitcoin Crypto Currency Mining Machine Canaan AvalonMiner 1166 0

Miner Model Algorithm Power Weight Size
Ant S19XP 140T SHA-256 3010 W 14.5KG 195 x 290 x 400mm
Ant S19J 90T SHA-256 3250 W 14.2KG 195 x 290 x 370mm
Ant S19 95T SHA-256 3250 W 14.5KG 195 x 290 x 400mm
Ant S19J Pro 96T SHA-256 2832W 14.2KG 195 x 290 x 400mm
Ant S19J Pro 100T SHA-256 3050 W 13.2KG 195 x 290 x 370mm
Ant S19J Pro 104T SHA-256 3068w 13.2KG 195 x 290 x 370mm
Ant S19 Pro 110T SHA-256 3250 W 13.2KG 195 x 290 x 370mm
Ant T19 88T SHA-256 3344W 14.2KG 195 x 290 x 400mm

Ant S9 13.5/14 T SHA-256 1350 / 1400 W 4.2KG 135 x 158 x 350mm
Ant S9j 14.5T SHA-256 1350 W 4.2KG 135 x 158 x 350mm
Ant S9 SE 16T/17T SHA-256 1280 W 4.6KG 129 x 200 x 321mm

Avalon 1166pro 81T SHA-256 3400W 13KG 306 x 405 x 442mm
Avalon 1246 83/85/87 SHA-256 3420W 13KG 331 x 195 x 292mm
Avalon 1126pro 68Th SHA-256 3420W 11.2KG 331 x 195 x 292mm

Innosilicon T2TZ 29/30T SHA-256 2400 W 9KG 141 x 220 x 391mm
Innosilicon T2TH 32T SHA-256 2200 W 7.5KG 150 x 180 x 400mm

MicroBT M20S 68 T SHA-256 3360W 12.5KG 130 x 220 x 390mm
MicroBT M21S 56 T SHA-256 3360 W 12.5KG 155 x 240 x 390mm
MicroBT M30S 100T SHA-256 3400W 10.5KG 150 x 225 x 390mm
MicroBT M30S+ 112T SHA-256 3472W 10.5KG 155 x 225 x 425mm
MicroBT M31S 76T SHA-256 3220W 12.5KG 130 x 220 x 390mm
MicroBT M31S+ 80T SHA-256 3360W 11.5KG 120 x 230 x 390mm
MicroBT M32 66T SHA-256 3432W 12.5KG 150 x 240 x 390mm

Innosilicon A11Pro 2GH Ethash 2500W 9KG 136 x 285 x 362mm
Innosilicon A10 Pro 500MH Ethash 1350W 9KG 136 x 285 x 362mm
Innosilicon A10 Pro+ 750MH Ethash 860 W 9KG 136 x 285 x 362mm
Ant E9 3GH Ethash 2556W 14.2KG 195 x 290 x 400mm

Ant L7 9500MH Scrypt 3425W 13.2KG 195 x 290 x 370mm
Ant L7 9160MH Scrypt 3425W 13.2KG 195 x 290 x 370mm
Ant L3+ 504M Scrypt 800W 4.5KG 188 x 130 x 352mm
Goldshell LT5Pro Scrypt 3100W 8.5KG 200 x 264 x 270mm

Ant DR5 (35Th) Blake256R14 1610W 8KG 178 x 238 x 297mm
StrongU STU-U1+ Blake256R14 1850W 6.6KG 130 x 210 x 348mm
D1 Blake256R14 2200W 8.5KG 130 x 220 x 390mm

Ant Z15 420K Equihash 1510 W 9KG 133 x 245 x 290mm
Ant D7 1.286Th/s X11 algorithm 3148W 14.2KG 400 x 195 x 290mm
Goldshell HS5 Handshake, Blake2B-Sia 2650w/1500W 8.5KG 264 x 200 x 290mm
Goldshell CK5 Eaglesong 2400w 8.5KG 264 x 200 x 290mm
Goldshell KD5 Kadena 2250W 8.5KG 200 x 264 x 290mm
Goldshell KD6 Kadena 2630W 8.5KG 200 x 264 x 290mm



we have both stock and preorder for your selection, welcome to contact us for daily price update directly :)





Bitcoin Crypto Currency Mining Machine Canaan AvalonMiner 1166 1

Bitcoin Crypto Currency Mining Machine Canaan AvalonMiner 1166 2

Simple specification and current recomand profit for this Stock Canaan AvalonMiner 1246 85T 87T 90T 93T 96T A1246 SHA-256 Bitcoin Miner:

Bitcoin Crypto Currency Mining Machine Canaan AvalonMiner 1166 3

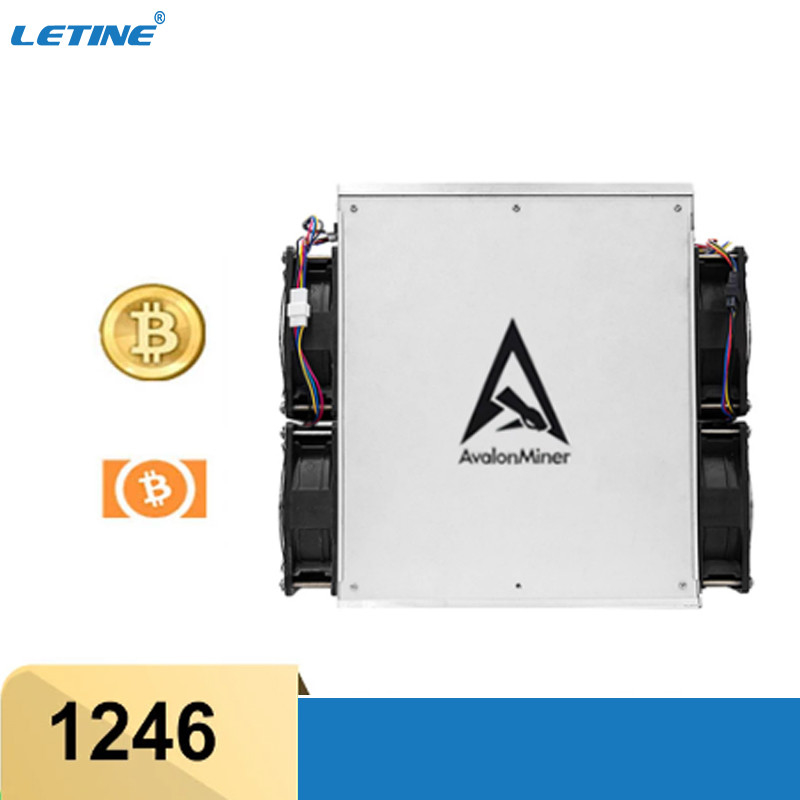

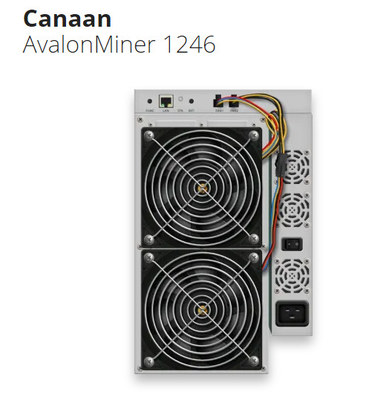

Real picture for this Stock Canaan AvalonMiner 1246 85T 87T 90T 93T 96T A1246 SHA-256 Bitcoin Miner





Bitcoin Crypto Currency Mining Machine Canaan AvalonMiner 1166 4

Bitcoin Crypto Currency Mining Machine Canaan AvalonMiner 1166 5

Packing for this Stock Canaan AvalonMiner 1246 85T 87T 90T 93T 96T A1246 SHA-256 Bitcoin Miner

Bitcoin Crypto Currency Mining Machine Canaan AvalonMiner 1166 6
